Cost Effective Power Monitoring with Advanced Features & Communications

Algodue UEM Kilowatt Hour (kWh) Meters

UEM Series Overview

The UEM series of single and three-phase kilowatt-hour (kWh) meters by Algodue provide a high-quality and cost-competitive solution for real-time power monitoring and accumulative power usage recording where advanced power quality parameters do not need to be measured.

There are meter options available for 40/80A direct and 1/5A CT connect for current measurement.

With various communications options these kilowatt hour meters can connect easily with a BMS, EMS or PCMS via high level interface including Modbus-TCP/IP (Ethernet), Modbus-RTU/ASCII (RS485), and MBus.

The Ethernet models include an integrated webserver for remote viewing of real-time values, data-logging, device configuration and setup. Furthermore, this web-browser interface provides the option to setup NTP server time sync and scheduled FTP transmission of logged data.

Multiple Current Measurement Options

40A & 80A Direct Connect Options

1/5A Current Transformer (CT) Connect

Built-In Communications for Data Transmittal & Integrations

RS485 Modbus-RTU/ASCII

The RS485 versions communicate via Modbus-RTU/ASCII. This option allows for device configuration directly or from a PC using the Algodue WintoolNET application.

Ethernet Modbus-TCP/IP

The Ethernet versions communicate via Modbus-TCP/IP providing for a quick and simple setup solution including the benefits associated with an IP based system. These models also have the ability to sync with an NTP server for synchronised and timestamped data logging and reporting. This option allows for device configuration directly or from a PC using the Algodue WintoolNET application or the integrated webserver.

Integrated Webserver

The Ethernet versions also include an integrated webserver providing a user friendly interface for initial setup, viewing real-time and historical data, manual download of recordings to a csv file, and setup of scheduled FTP push.

Multiple Options for Measurement & Communications

Single-Phase Metering Options

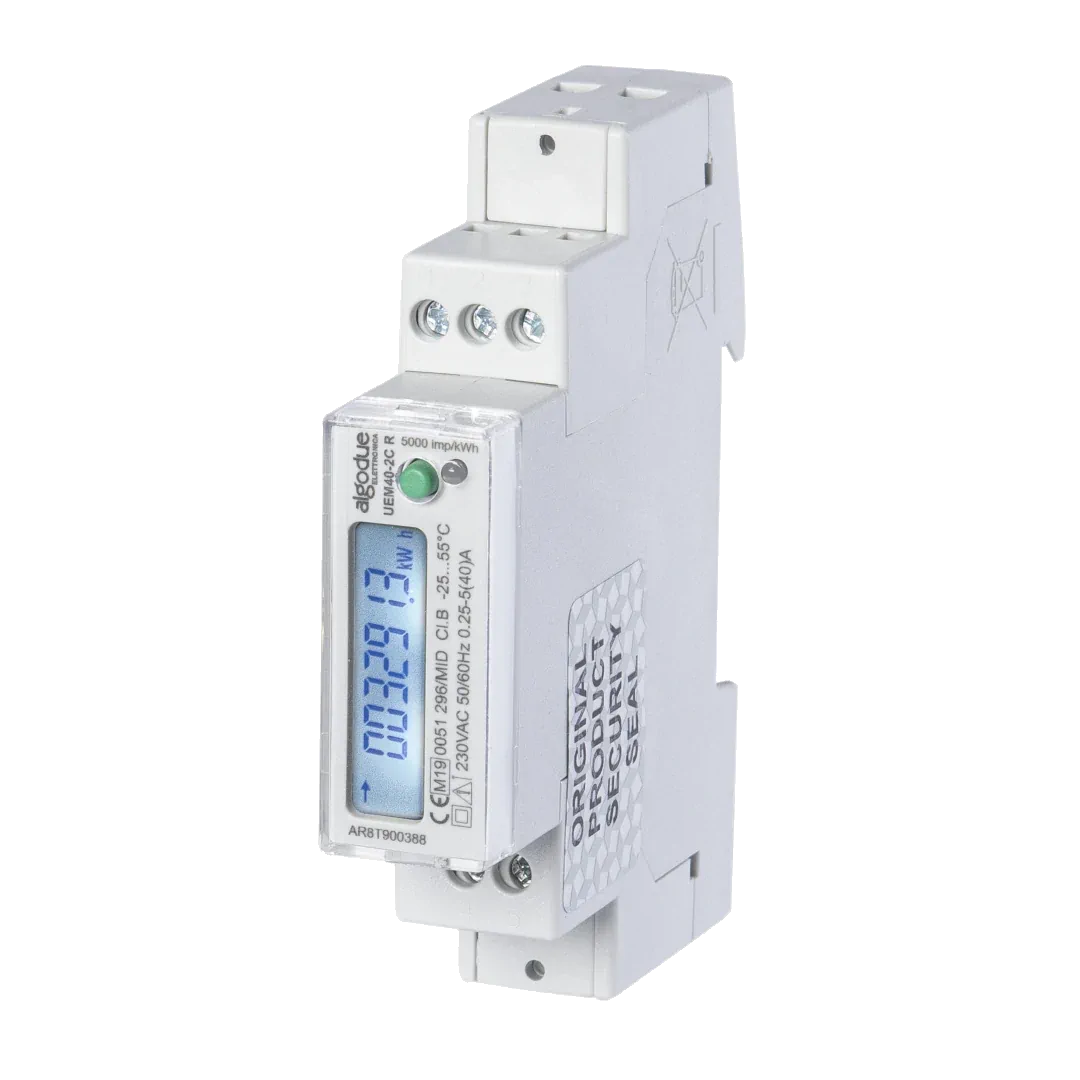

UEM40-2C Single-Phase kWh Meter

40A Direct Connect
RS485 | MBus
Class 1 Accuracy per IEC 62053-21
Data Sheet

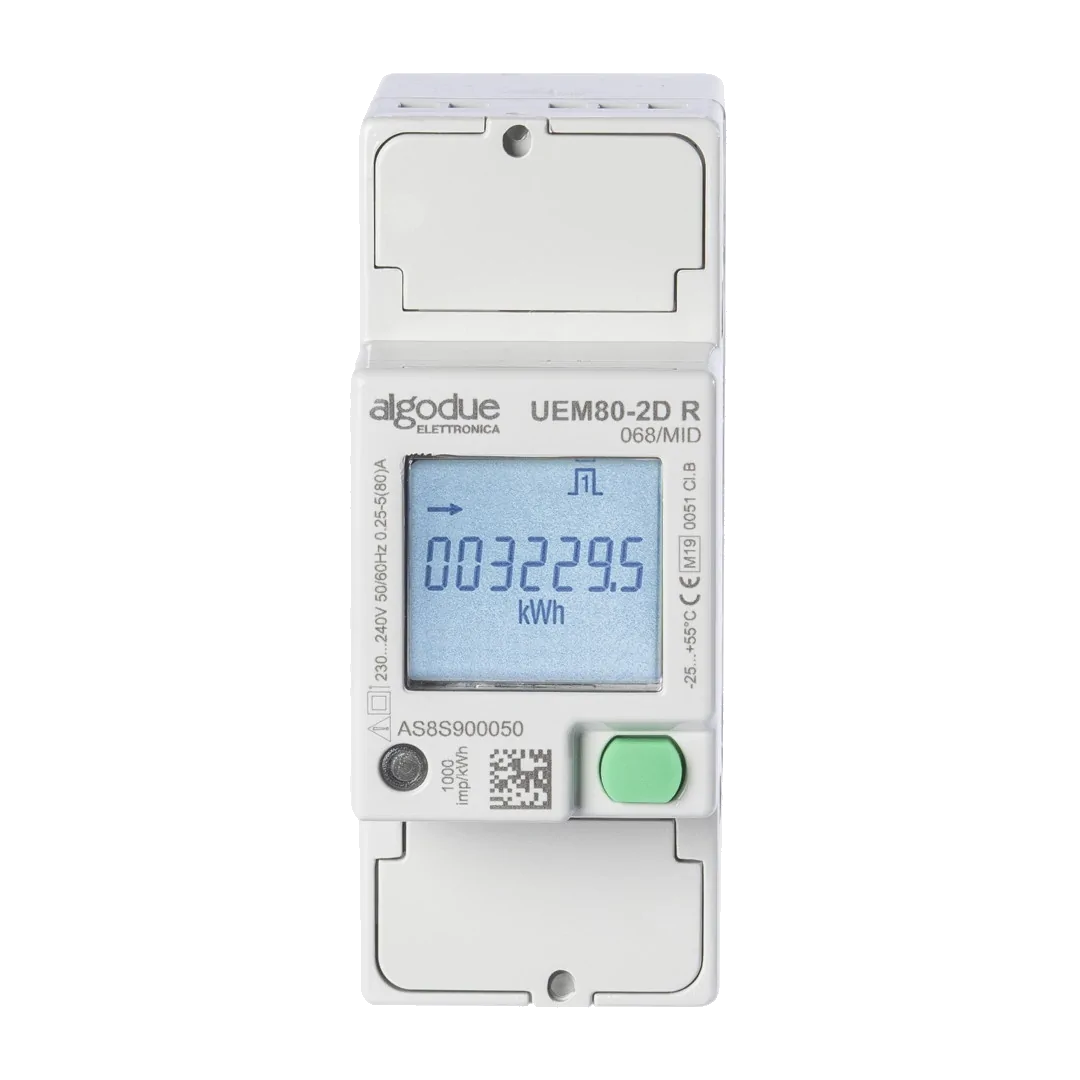

UEM80-2D Single-Phase kWh Meter

80A Direct Connect
RS485 | MBus | Ethernet
Class 1 Accuracy per IEC 62053-21
Data Sheet

Three-Phase Metering Options

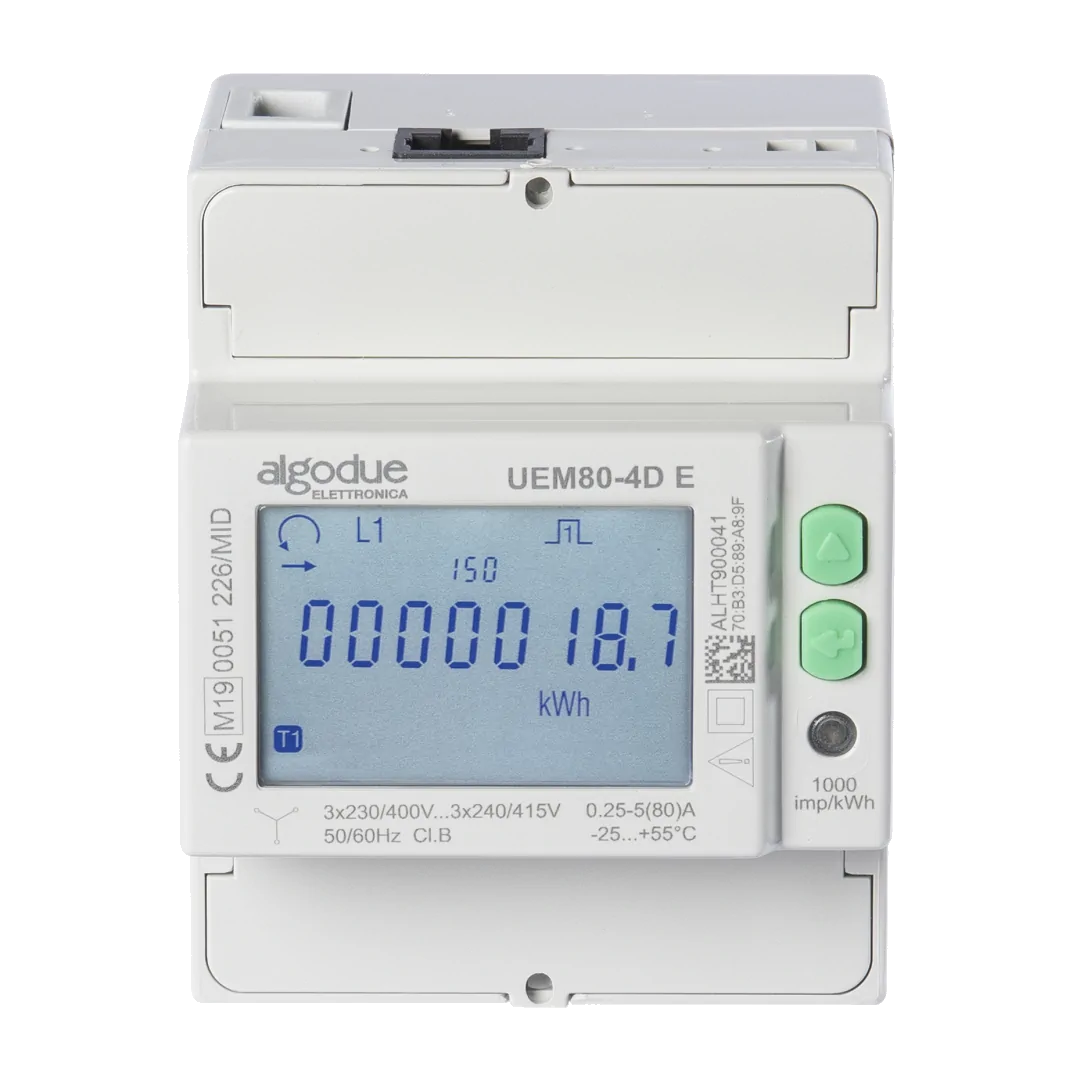

UEM80 Three-Phase kWh Meter

80A Direct Connect
RS485 | MBus | Ethernet
Class 1 Accuracy per IEC 62053-21
Data Sheet

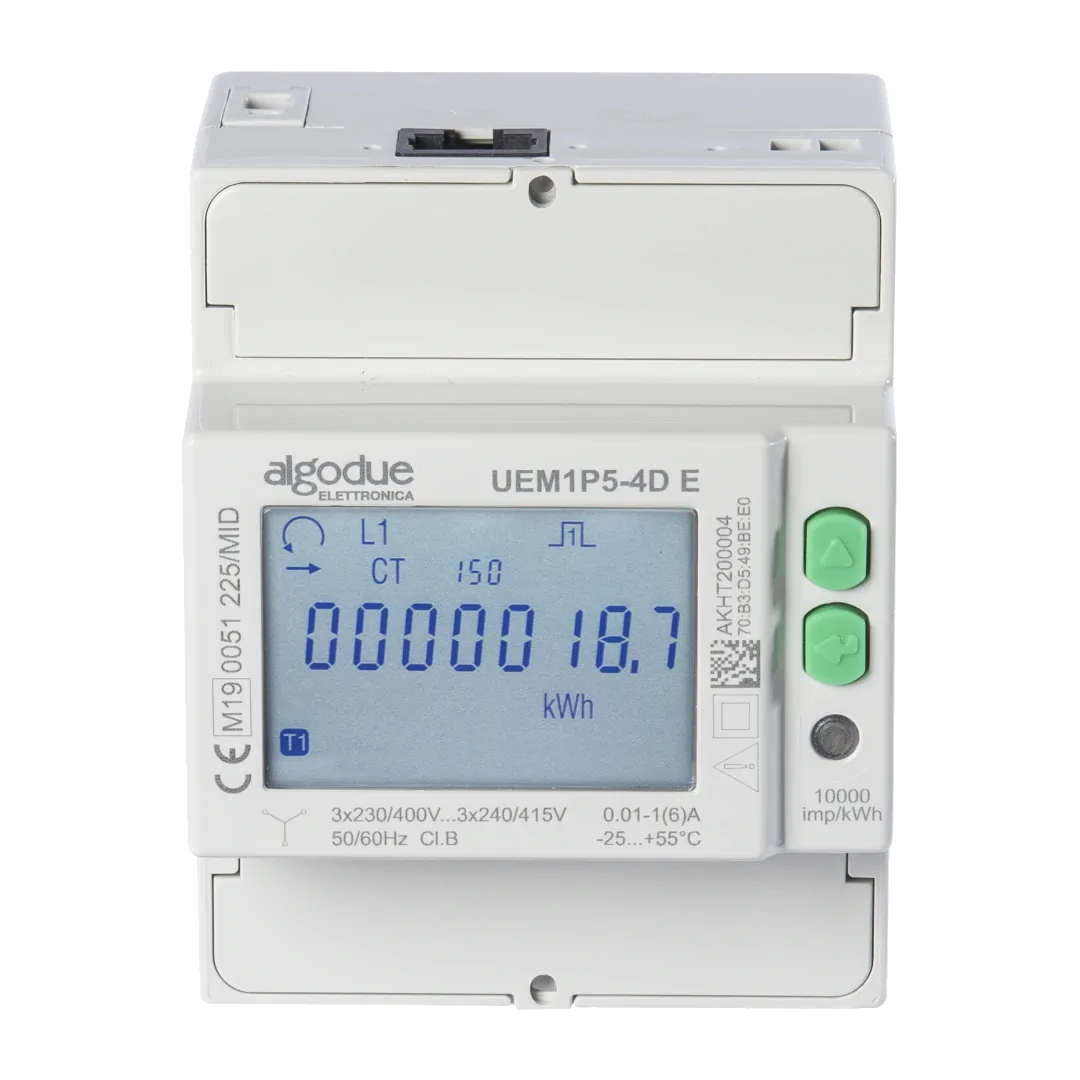

UEM1P5 Three-Phase kWh Meter

1/5A Direct Connect
RS485 | MBus | Ethernet
Class 1 Accuracy per IEC 62053-21
Data Sheet

UEM6C Three-Phase kWh Meter

Algodue UEM6C Kilowatt Hour Meter
1/5A Direct Connect
RS485 | MBus | Ethernet
Class 0.5S Accuracy per IEC 62053-22
Data Sheet
