Rogowski Coil Kit for Sungrow DTSU666-20 Wiring Diagram

Rogowski Coil Kit for Sungrow DTSU666-20 Smart Meter

Price range: $1,028.50 through $1,082.95 Incl. GST

This Rogowski coil kit is a high-quality, easy-to-install solution designed to suit the Sungrow DTSU666-20 Three-Phase Smart Meter. Ideal for applications where space constraints or split-core current transformers are limiting, this kit delivers accurate current measurement with minimal installation effort.

Works With:

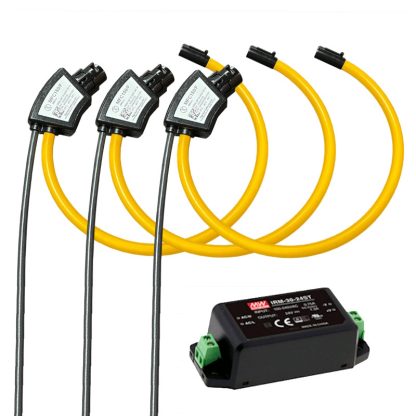

Kit Includes:

3x Algodue MFC150/F Flexible Rogowski Coils (11cm, 17.5cm, and 27cm diameter options)
1x Mean Well 12V DC Power Supply

Features:

Non-invasive, flexible CT design for quick installation
High-accuracy current measurement for commercial energy monitoring
Compatible directly with Sungrow DTSU666-20 Smart Meter
IEC certified components
Low burden voltage and wide dynamic range

Applications:

Commercial solar energy systems
Retrofitting existing Sungrow DTSU666-20 smart meters

Downloads:

MFC150/F Rogowski Coil Data Sheet

MFC150/F Rogowski Coil Installation Manual

Sungrow DTSU666-20 Power Meter Data Sheet

Sungrow DTSU666-20 Power Meter Installation Manual

Configuration

Clear

SKU: N/A Categories: Current Clamps, Monitoring and Control, Power Metering, Rogowski Coils & Integrators, Solar Solutions Tags: Commercial Solar, DTSU666-20, RCK-S-1000-333-40, RCK-S-2000-333-60, RCK-S-5000-333-90, Sungrow

Additional information

Additional information

Weight	600 g
Dimensions	300 × 200 × 100 mm
Configuration	11cm 1kA, 17.5cm 2kA
